Extend Online Maps to create a horizon (Page 3 of 3)

Hello again,

I have followed the video, the only thing that is different is that I used the skybox instead. Could this be the problem? If yes, where can I find the same skybox material used in the video?

Also, If this info is in this thread and I missed I'm sorry, but could you tell me how can I hide the horizon border using a shader?

The other thing that I think would solve my problem is limiting the rotation on x, but when I changed the maxRotationX on the Camera Orbit script it does nothing. Could you tell me what I can do to limit the rotation on x?

I used these skyboxes:
https://assetstore.unity.com/packages/2 … x-one-6332

How to make horizon fade using shader:
https://www.dropbox.com/s/f0e0w8sdlgdql … e.mp4?dl=0

Tileset Fade Shader in post #4.

Horizon Fade Shader (it's just a slightly modified version of Tileset Fade Shader):

Shader "Infinity Code/Online Maps/Horizon Fade Shader"
{
    Properties
    {
        _Color("Main Color", Color) = (1,1,1,1)
        _MainTex("Base (RGB) Trans (A)", 2D) = "white" {}
        _OverlayBackTex("Overlay Back Texture", 2D) = "black" {}
        _OverlayBackAlpha("Overlay Back Alpha", Range(0, 1)) = 1
        _TrafficTex("Traffic Texture", 2D) = "black" {}
        _OverlayFrontTex("Overlay Front Texture", 2D) = "black" {}
        _OverlayFrontAlpha("Overlay Front Alpha", Range(0, 1)) = 1
    }

    SubShader
    {
        Tags{ "Queue" = "Transparent-200" "IgnoreProjector" = "True" "RenderType" = "Opaque" }
        LOD 200

        CGPROGRAM
#pragma surface surf Lambert alpha

        sampler2D _MainTex;

        struct Input
        {
            float2 uv_MainTex;
            float3 worldPos;
        };

        void surf(Input IN, inout SurfaceOutput o)
        {
            float tilesetSizeX = 1024;
            float tilesetSizeY = 1024;
            float startFadeDist = 2600;
            float fadeRange = 1024;

            float3 center = float3(tilesetSizeX / -2, 0, tilesetSizeY / 2);

            float3 wp = mul(unity_WorldToObject, float4(IN.worldPos, 1)).xyz;
            float3 dist = center - float3(wp.x, 0, wp.z);
            float len = length(dist);
            float scale = (len - startFadeDist) / fadeRange;

            o.Alpha = saturate(1 - scale);

            fixed4 c = tex2D(_MainTex, IN.uv_MainTex);
            o.Albedo = c.rgb;
        }
        ENDCG
    }

    Fallback "Transparent/Cutout/Diffuse"
}

Unfortunately, I did not understand why you rotated the map in post #54.
You definitely don't need to do this.

Hello,

I just purchased the Online Maps v3 from the Unity asset store and trying to implement the horizon. I am using version 3.9.3.1

I have a couple issues, I was not able to find the horizon scripts from the video. The only one I can find is the "HorizonWithoutElevation". Is this the script I should be using?

Next, I use the Universal Render Pipeline, and the legacy shaders are not rendering (showing magenta). What shader should I use that will work with the URP?

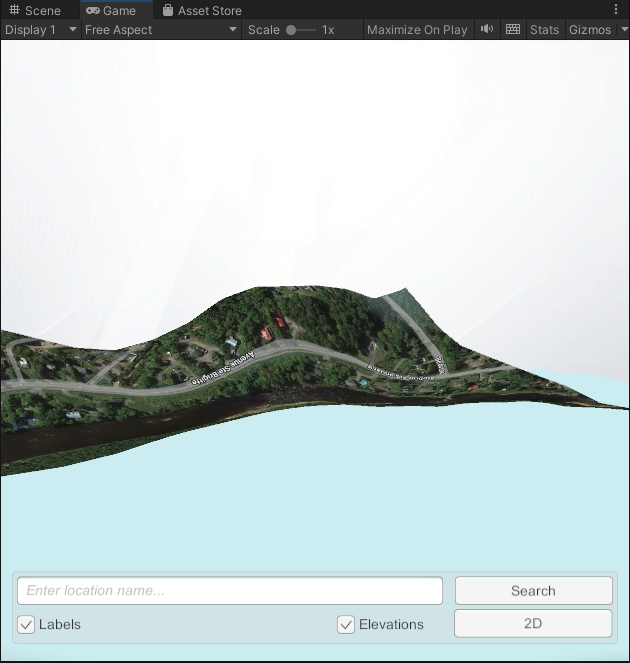

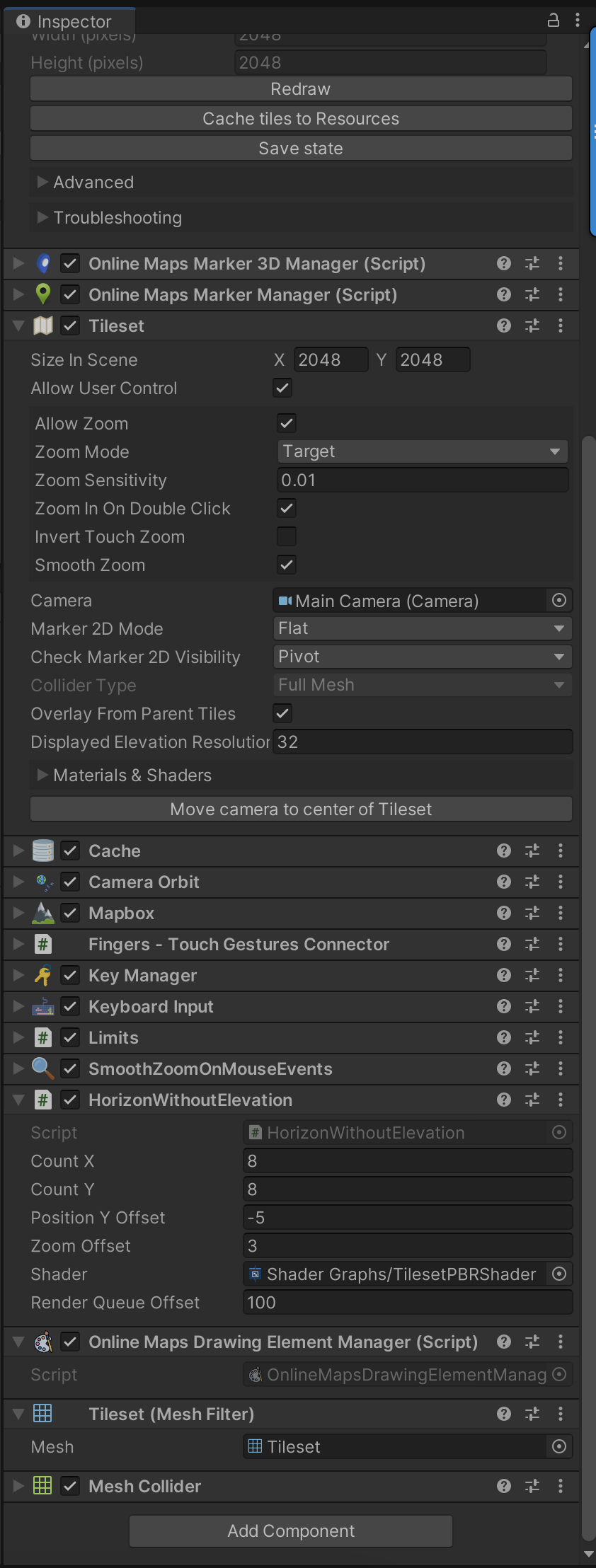

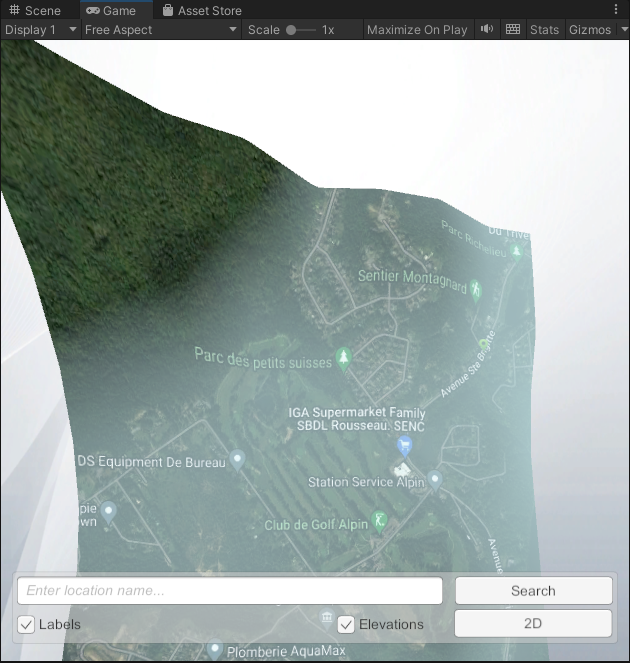

As a test I am using "TileSetPBRShader" but that has strange results when zooming in and out.  I have added a screen clip of my map and horizon settings. Here is a link to a video demonstrating the issues with the test shader... https://app.screencast.com/fKIIWkeE4J0oA

When I used the map wizard to create the map I enabled Mapbox elevations. Could this be creating the rendering issues? Is there a way to have elevations and a horizon?
