Topic: Clunky heightmap terrain

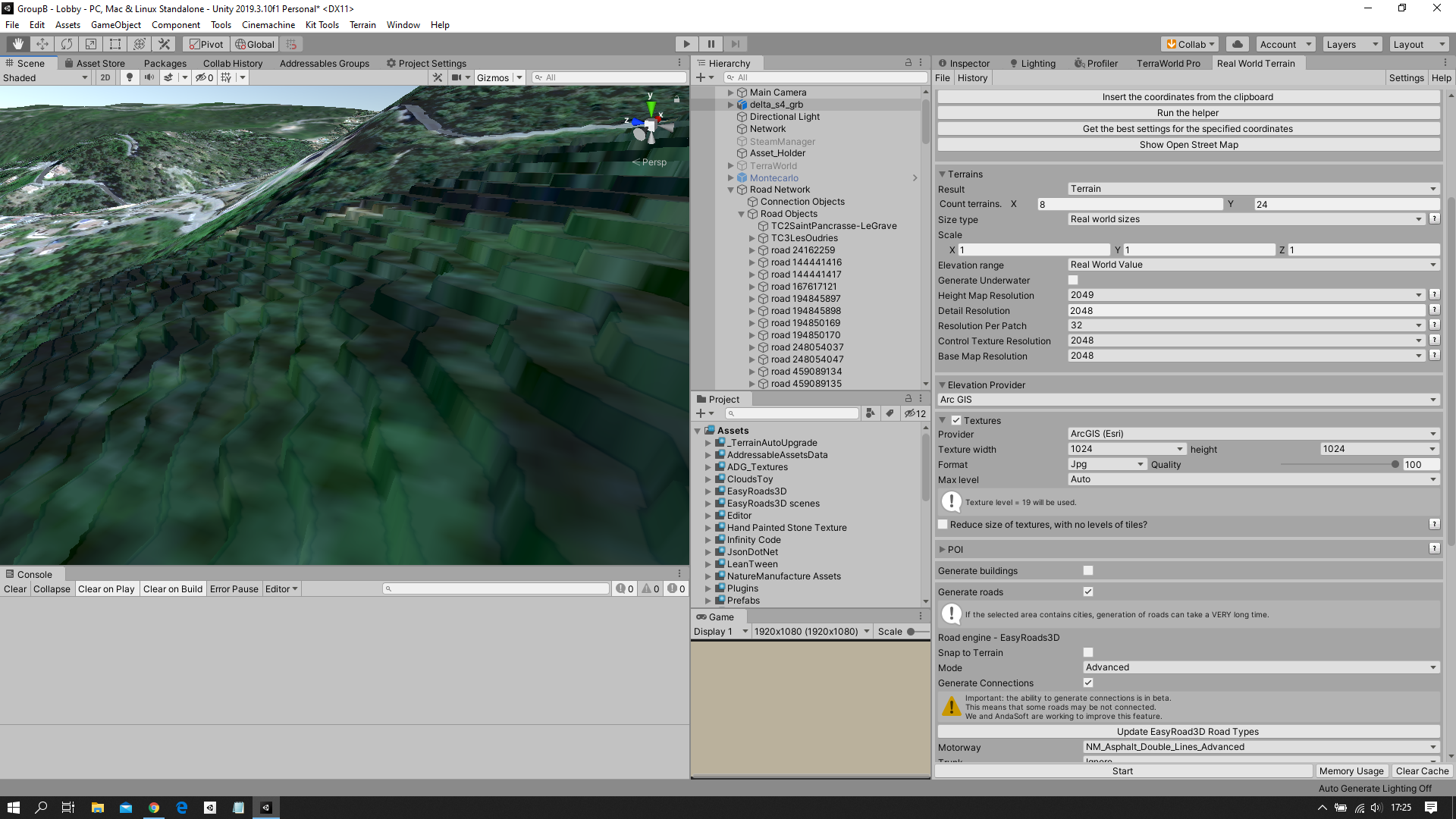

I am stunned did not find anything in the forum about the heightmap clunky steps aspect. No one else has the minecrafted terrain like in the attached image?
In the image, enclosed, the RWT setting in case anyone can see any error causing the steps.
If it's something relative to the imported RAW bit settings, can it be changed to 16 bit greyscale?
If it's something relative to the maximum resolution of the data providers, is there a way to smooth the terrain?
Any help will be appreciated,
Joan

Post's attachments

Attachment icon Captura de pantalla (1).png 1.02 mb, 2 downloads since 2020-05-11

Re: Clunky heightmap terrain

Hello.

You have this result because of Elevation Range - Real World Value.
With these settings, RWT uses a range from -15km to 15km, giving a range of 30km.
Unity Terrain Engine stores the heightmap as ushort array (2 bytes), which means you have 1 height step every 0.5 meters.
Elevation Range - Real World Value should be used for very specific situations.
In most cases, it is better to use Elevation Range - Auto Detect.

Kind Regards,
Infinity Code Team.

Do not know the best way to thank the developer? Rate the asset in Asset Store!

Re: Clunky heightmap terrain

That easy, huh?
Thank you very much.
I spent few days stuck with this.
It is a great asset Alex.
Regards,
Joan
