Topic: Polygones in overlay mode with border thickness

I have a problem with polygones in overlay mode.
I make two polygones in Switzerland :
* 1 polygone in Lausanne (town in switzerland) that covers two streets in this village with a border_thikness=15.
* 1 polygone which covers almost half of Switzerland  with border_thikness = 1

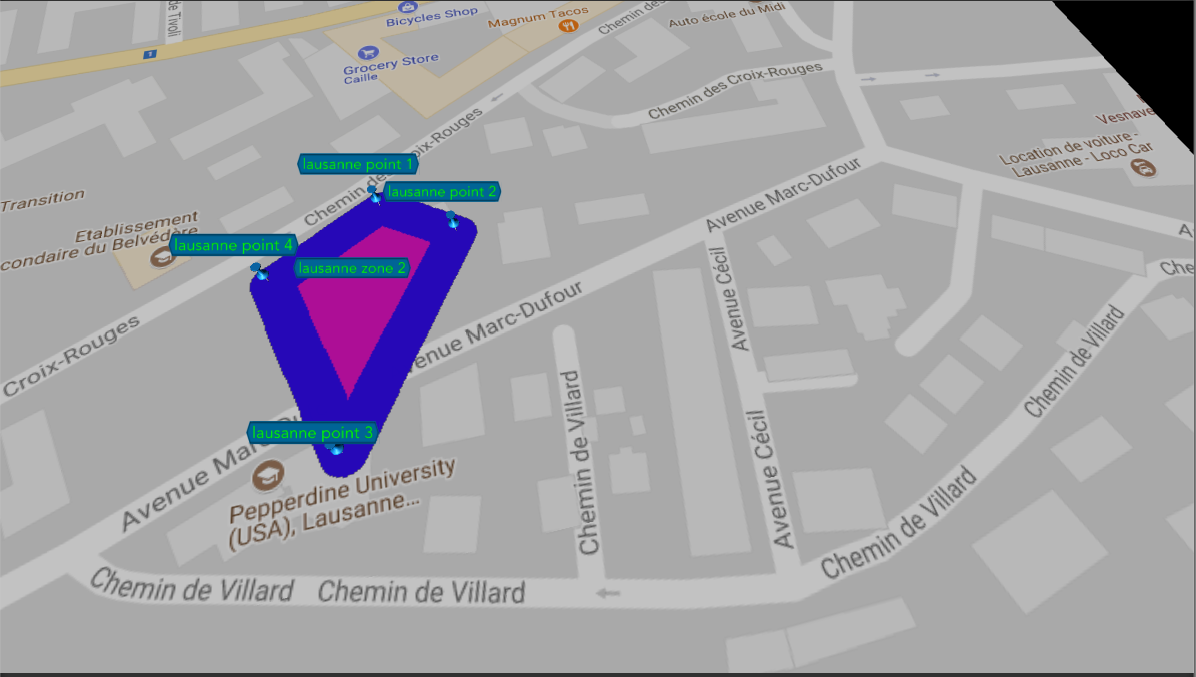

In zoom= 18 (zoneBug_1.png : exemple of the polygone 1 ), no problem, but if I zoom out to zoom = 1 I will have my polygone1 that covers all of Switzerland and part of France while the other zone is still valid (zoneBug_2.png

You will have the second capture in the next reply

Post's attachments

Attachment icon zoneBug_1.PNG 271.71 kb, 36 downloads since 2017-07-17

2 (edited by trouk 2017-07-17 10:38:44)

Re: Polygones in overlay mode with border thickness

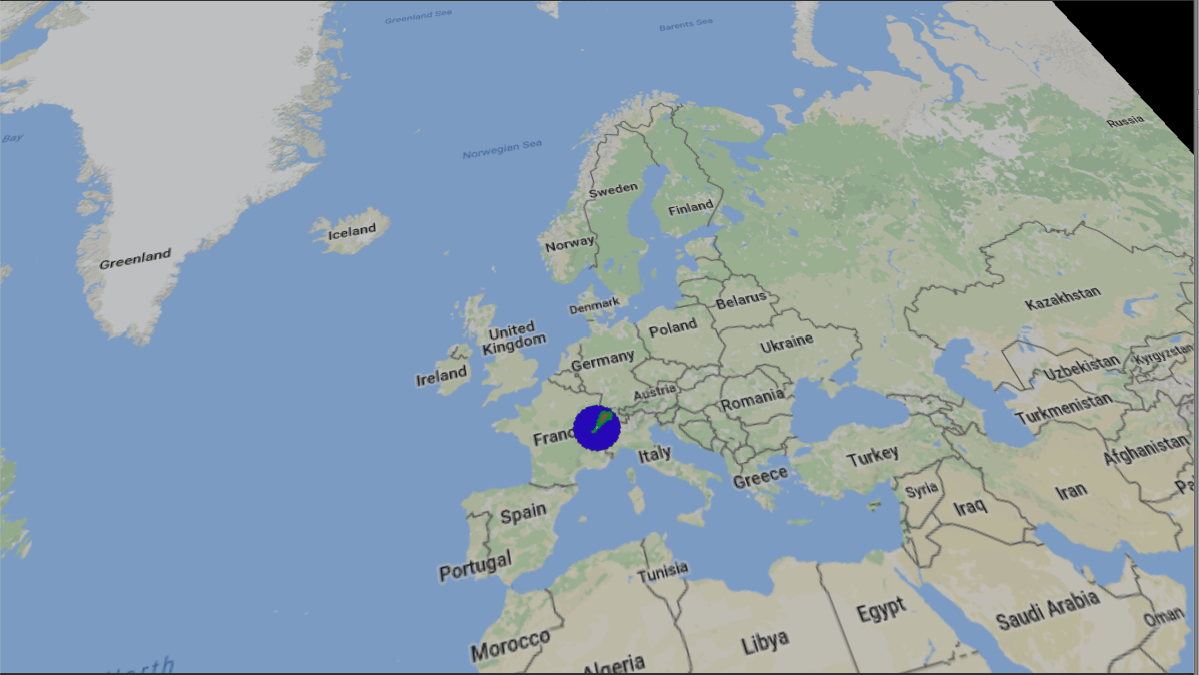

This reply for the second capture in the zoom 1( polygone 1 is blue: the color of his border / plygone 2 is the red one with border in green)

Post's attachments

Attachment icon zoneBug_2.PNG 594.95 kb, 34 downloads since 2017-07-17

Re: Polygones in overlay mode with border thickness

Hello.

I looked at your screenshots, and do not see the problem.
I think this works correctly.
Due to small size of the polygon and the thick border, you see just a circle.

Kind Regards,
Infinity Code Team.

Do not know the best way to thank the developer? Rate the asset in Asset Store!

Re: Polygones in overlay mode with border thickness

Hi

My first polygon actually covers two streets in a village in lausanne but if I zoom in on my zoom 1, my polygon will cover all of Switzerland and part of France
Normally the border thicknes must also be updated according to the zoom of the Map right?

Re: Polygones in overlay mode with border thickness

No, the thickness of the line does not depend on the zoom level.
It is the same for zoom = 20 and zoom = 3.
If you want to make the thickness of the line depend on the zoom level, just change it when changing the zoom.

Kind Regards,
Infinity Code Team.
